AMX Harman DXLink 4K60 HDMI Fiber Transmitter Module, 0.98 in, 2160p, Wired

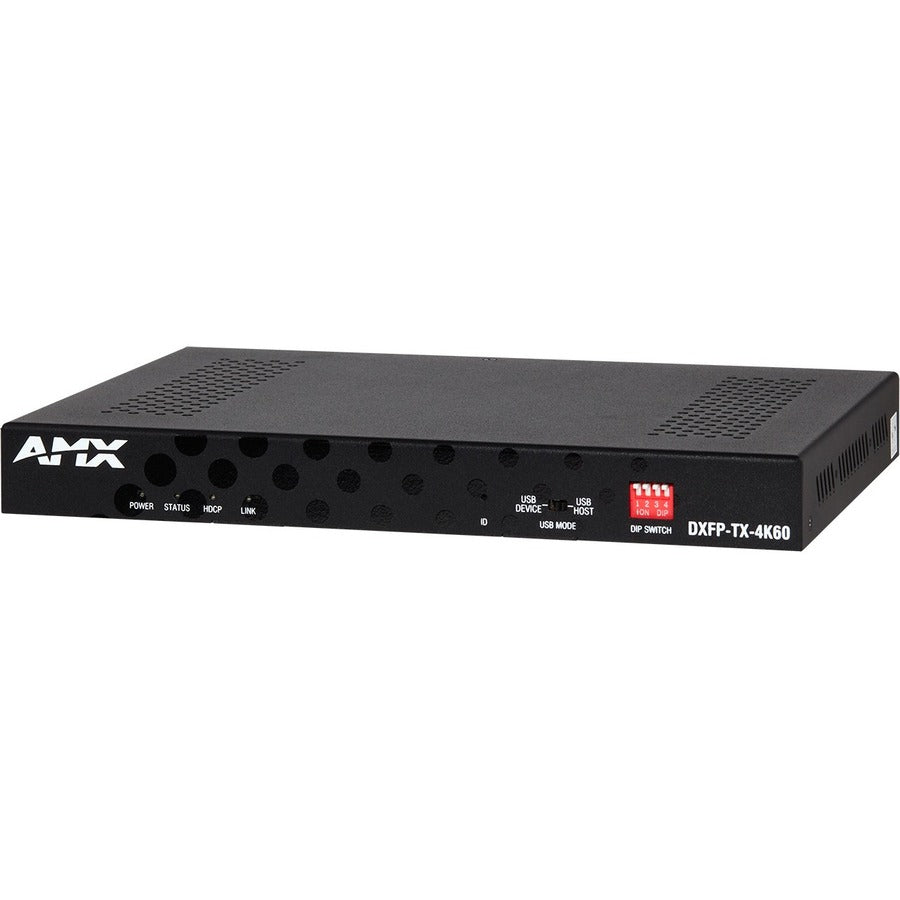

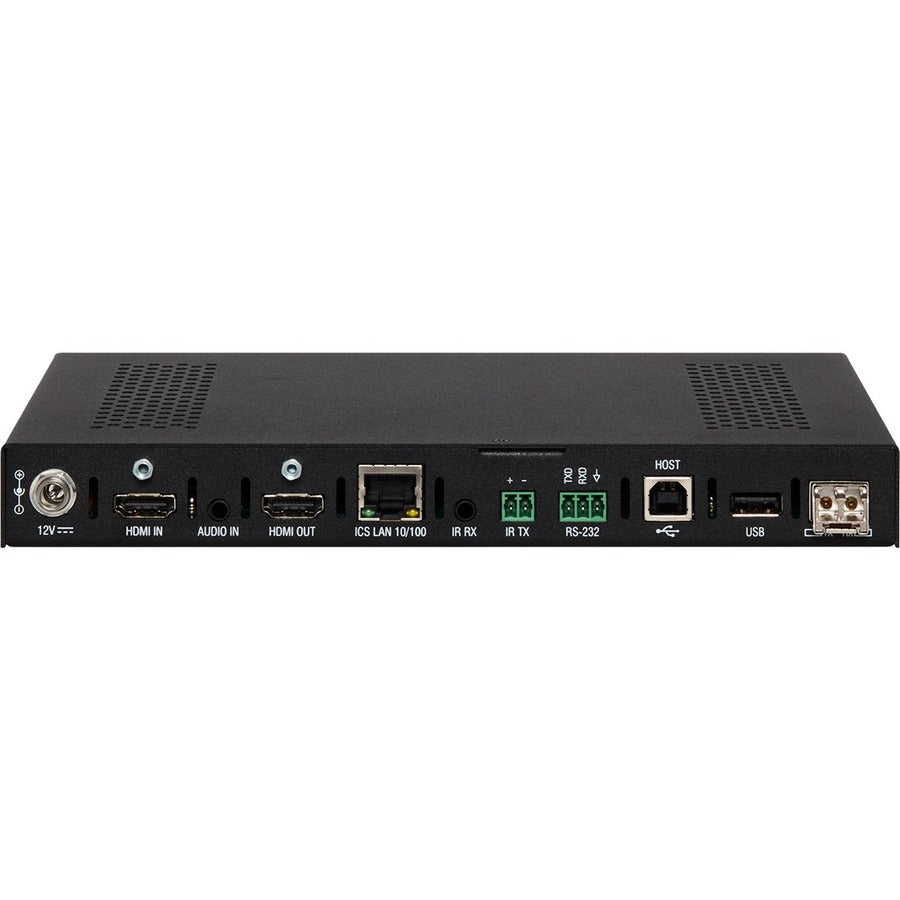

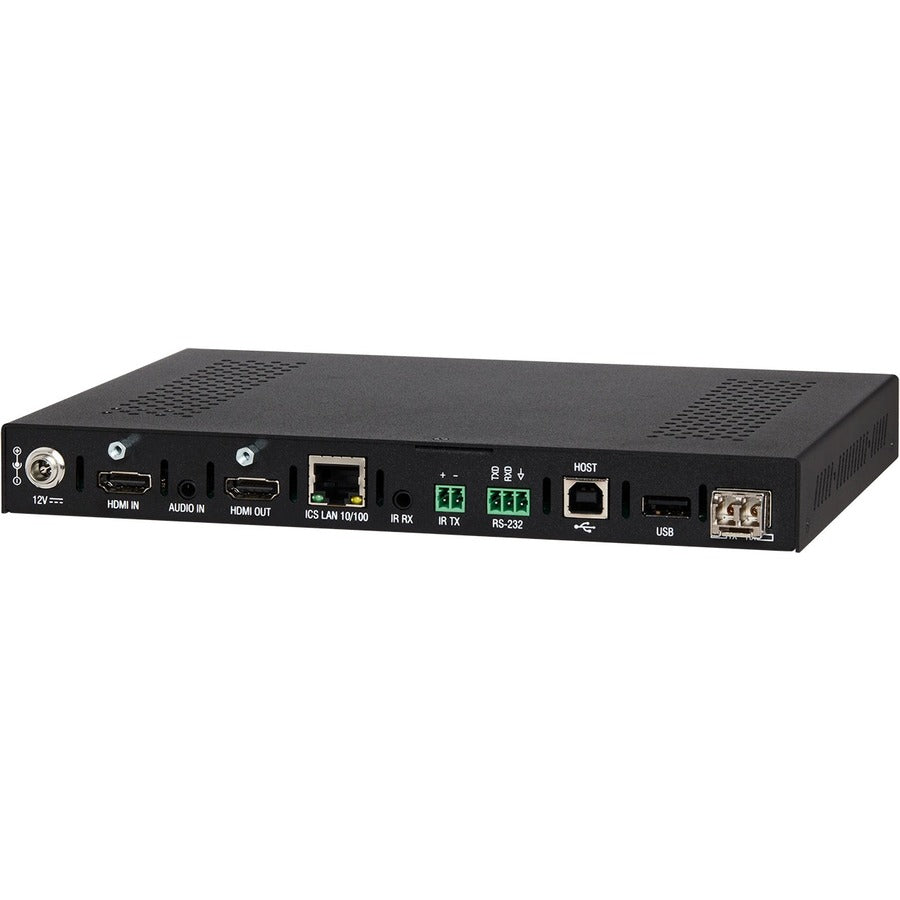

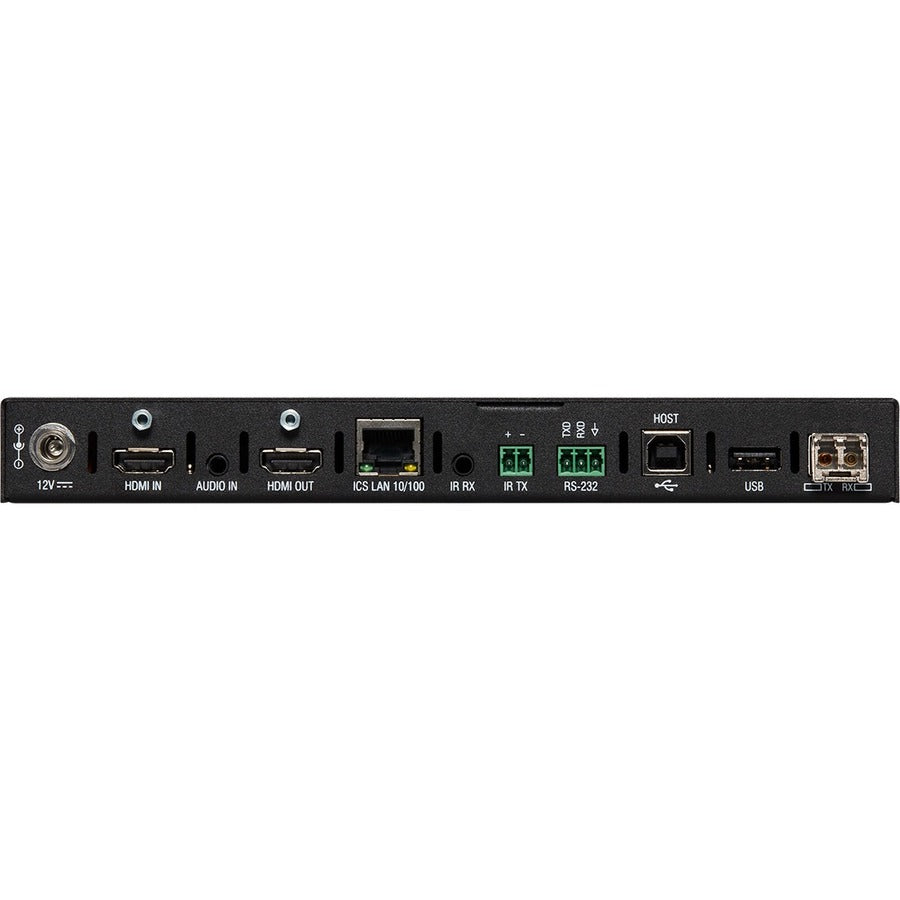

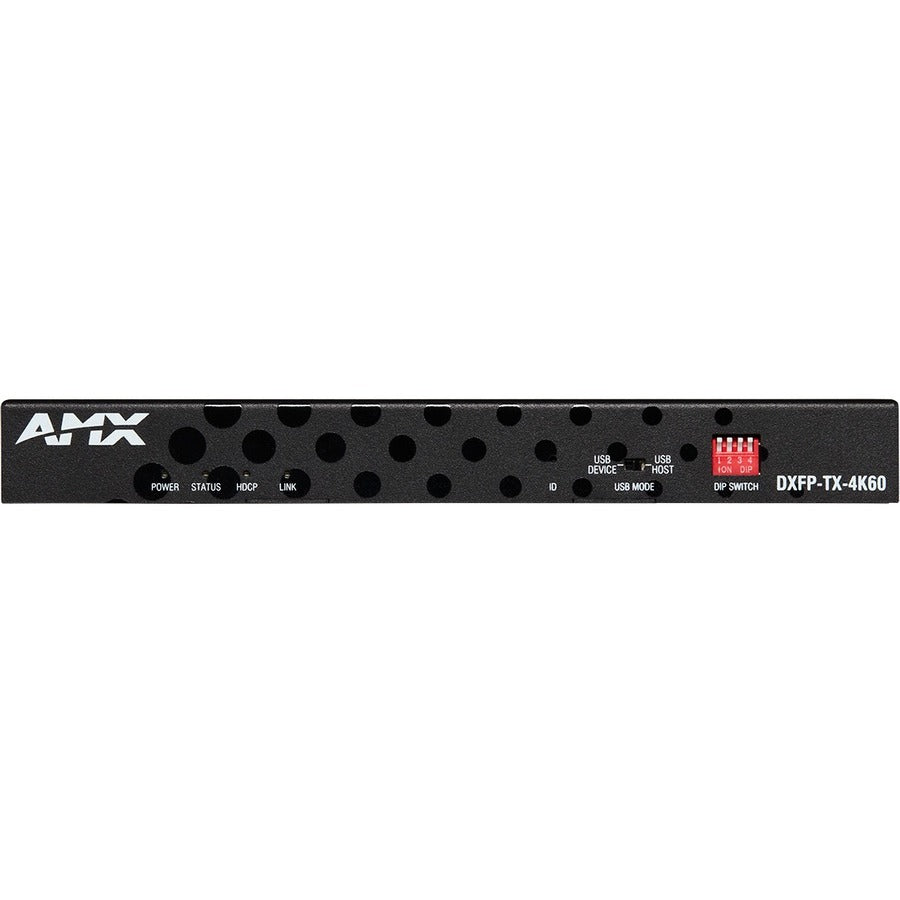

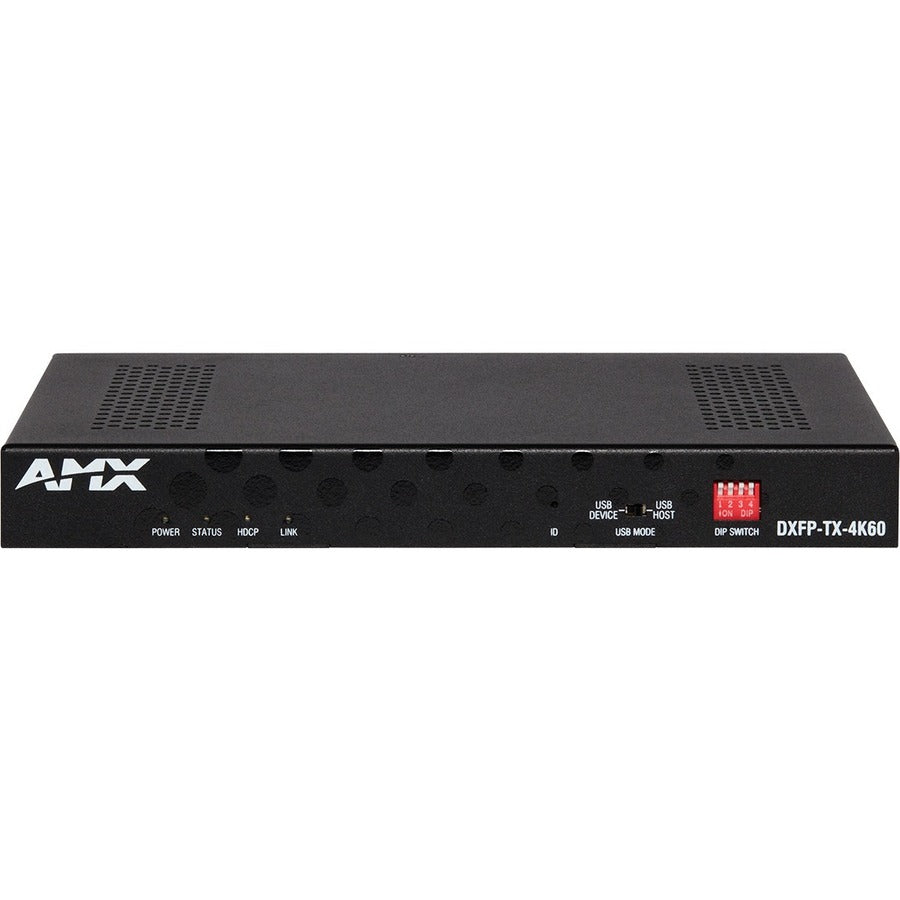

AMX DXLink 4K60 HDMI Fiber Transmitter Module

The DXLink 4K60 HDMI Fiber Transmitter is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for pixel-for-pixel image reproduction without chroma subsampling. It transmits audio, video, control, USB 2.0, and Ethernet over duplex fiber to a DXLink Fiber receiver, up to 550 meters away. This module includes a Multi-Mode Duplex (MMD) SFP+ module, which can be replaced with a Single-Mode Duplex (SMD) SFP+ module if needed.

Common Applications

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber input cards and DXLink 4K60 Fiber receivers. It is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.

• 4K@60Hz 4:4:4 8bit and HDCP 2.2 with Display Stream Compression (DSC) - Visually lossless


• compression and future-proof support.


• Only one cable - Send audio, video, control, USB 2.0, and Ethernet over one optical cable up


• to 300m with OM3 and 550m with OM4.


• Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10


• Gbps.


• Native NetLinx Control Everywhere - Control connected devices using the built-in IR and


• RS232 ports.


• USB 2.0 Pass-Through - Extend USB 2.0 signals up to 550 meters.
