Aten 17" Single-Rail LCD Integrated Console-TAA Compliant

Aten 17" Single-Rail LCD Integrated Console-TAA Compliant

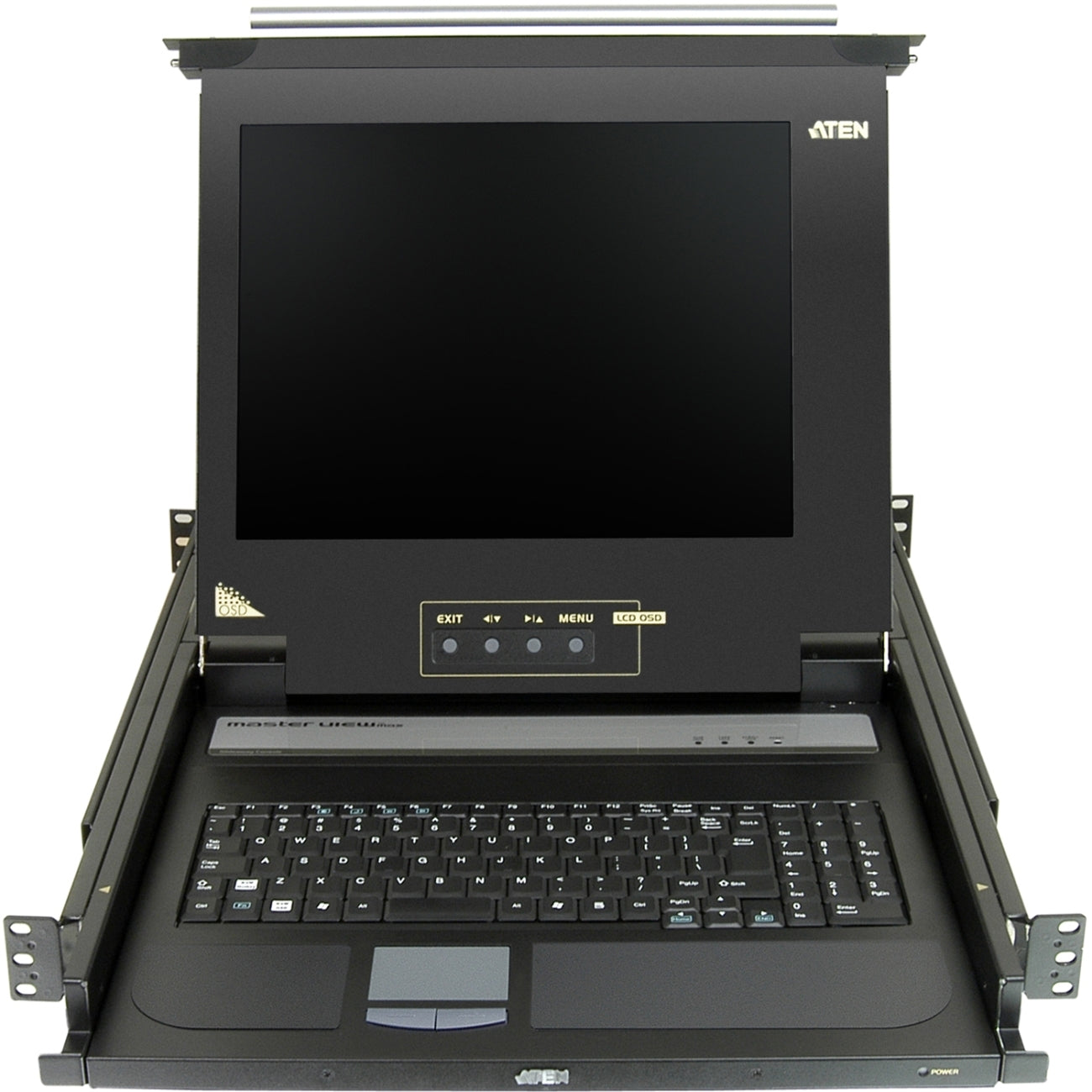

ATEN's new economy LCD KVM console, CL1000M, offers a space-saving, streamlined approach to IT environments by integrating a keyboard, 17" LCD monitor, and touchpad in a 1U Slideaway housing. The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines, and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module away back into the rack. There is no better way to save time and money than with a CL1000M installation. Just connect the cable between CL1000M and a KVM or a computer, and the CL 1000M is ready to serve you.

• Supports DDC, DDC2, DDC2B


• DDC emulation of the LCD monitor-Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor


• Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen


• Adjustable depth to fit within a rack


• Internal power supply


• Compatible with most PS/2 KVM Switches


• Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack


• LCD module rotates up to 115 degrees for a more comfortable viewing angle


• Integrated KVM console with 17" or 19" LED-backlit LCD monitor - in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack


• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
