Sans Digital EliteSTOR ES212X12 - 2U 12 Bay 12G SAS/SATA to SAS JBOD with 12G SAS Expander Rackmount

Sans Digital EliteSTOR ES212X12 - 2U 12 Bay 12G SAS/SATA to SAS JBOD with 12G SAS Expander Rackmount

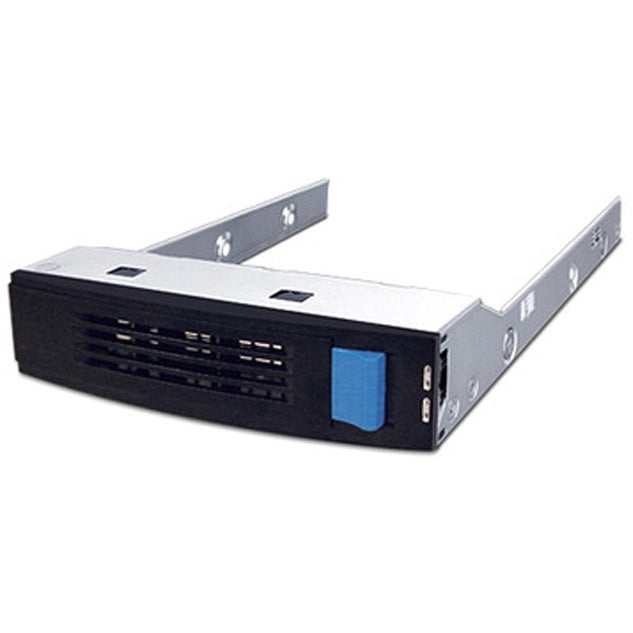

The EliteSTOR ES212X12 is a 2U SAS 12G JBOD rackmount for high capacity storage solution. Utilizing the latest 12G SAS expander technology, the ES212X12 provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES212X12 supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES212X12 supports up to 12 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca 12G RAID controller ARC-1883X or LSI MegaRAID, the ES212X12 is capable of delivering over in 3,000MB/s in read and write performance, doubling the existing 6G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES212X12 is an ideal storage expansion solution for servers or high performance video editing workstations.

• DAS Storage System offers maximum storage efficiency and convenience


• Robust scalability up to 12 drives to let you expand limitlessly


• Through RAID levels (jbod), RAID provides data reliability, fault tolerance and improves overall performance


• Up to 48 tb Data Storage Capacity - great for demanding organizational needs


• RAID technology - data reliability, fault tolerance and improved overall performance


• Rack-mountable das storage system allows easy and convenient usage without any trouble
