NSI EZEX38 SHIELDED RJ45 INTERNAL, 0 Inch Display, Compatible With Solid OR Stranded 24 22AWG Twisted Pair Cable 50 Micron Gold Plated Contacts HI LO

NSI Network Connector

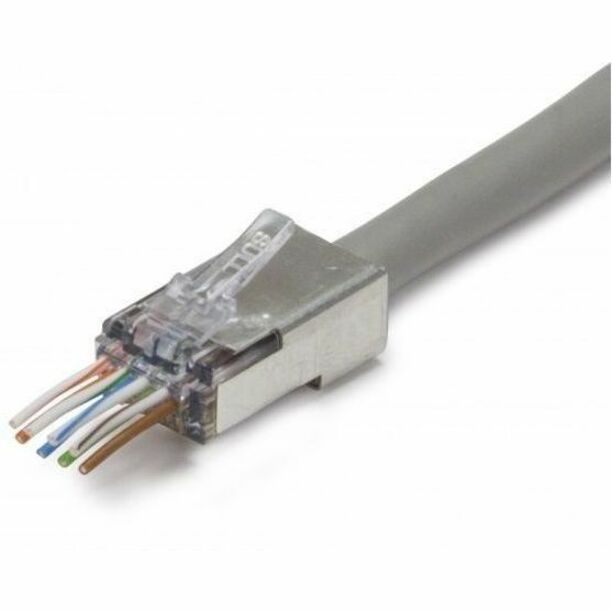

ezEX-RJ45(38) Pass-Through RJ45 Connectors, CAT5E Shielded with Internal Ground- 50pcs in Jar

•
  ezEX-RJ45 (ezEX38 series) pass-through RJ45 connectors


•
  ezEX38 connectors are designed for cables with 0.033" - 0.038" (0.84 - .97mm) insulation diameter


•
  Shielded with internal ground


•
  Package includes 50 pieces


•
  Jar with screw-lid packaging


•
  0.290" (7.36mm) max cable outer diameter


•
  0.033" - 0.038" (0.84 -0.97mm) max insulation diameter (conductors)


•
  Compatible with solid or stranded 24 - 22AWG twisted pair cable


•
  50 micron gold plated contacts


•
  Hi-Lo stagger to isolate each conductor


•
  Simple one piece/pass through design does not require bars or liners


•
  TAA, TIA, RoHS, UL & FCC compliant


•
  US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.


•
  Rated for data and PoE applications


•
  Recommended crimp tools: 100061 or 12520

• Terminate fascicle of network cables with this connector


• Contacts are plated with Gold
