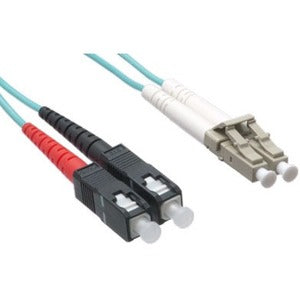

Axiom LC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant

Axiom LC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant

Attain optimal performance with Axiom OM4 laser-optimized multimode fiber patch cables. Axiom OM4 Fiber Optic Cables answer the call for increased bandwidth requirements used in cost-effective multi-mode systems. OM4 Cable provides an opportunity to future-proof cabling and networking infrastructure delivering increased bandwidth for next-generation 40 and 100Gb/s applications.
Axiom OM4 is completely backward compatible with existing OM3 applications. OM4 Cable is laser-optimized high bandwidth 50um multimode fiber, has a more stringent test specification, and provides an additional layer of performance that supports 10Gb, 40Gb, and 100Gb applications at longer distances.

Product Features:

• Fully compatible with 50um multimode fiber applications
• Multimode fiber construction - 50/125 diameter core and cladding
• Meets minimum reach distances standards for 10Gb, 40Gb, and 100Gb Ethernet distance performance requirements
• Designed for use in multi-mode, next-generation high bandwidth applications
• Factory terminated for superior performance
• Meets and exceeds industry standards for insertion loss
• 100% optically tested
• Limited lifetime warranty

• Multimode Duplex Fiber Optic Cable 50/125, Om4, Aqua


• OM4 Compliance: Effective Modal Bandwidth >= 4700 MHz-Km


• Enabling 40/100 Gb/S Parallel Transmission Concepts


• (2) LC/UPC Connectors On One Side, (2) SC/UPC Connectors On Other


• All Connectors Have Ceramic Ferrules


• Duplex Clips Both Sides


• Bend Insensitive


• Bending radius 10mm


• PVC (OFNR) Rated Aqua Jacket With Corning Glass


• Maximum Attenuation - (dB/Km) 3.0/1.0


• Wavelength (nm) 850/1300


• Jacket OD: 1.8mm


• Long Term Tensile Strength: 150n


• Long Term Crush Resistance: 200n/100mm


• Operating Temperature: -40° C To +70° C


• Color: Aqua
