SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m

SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m

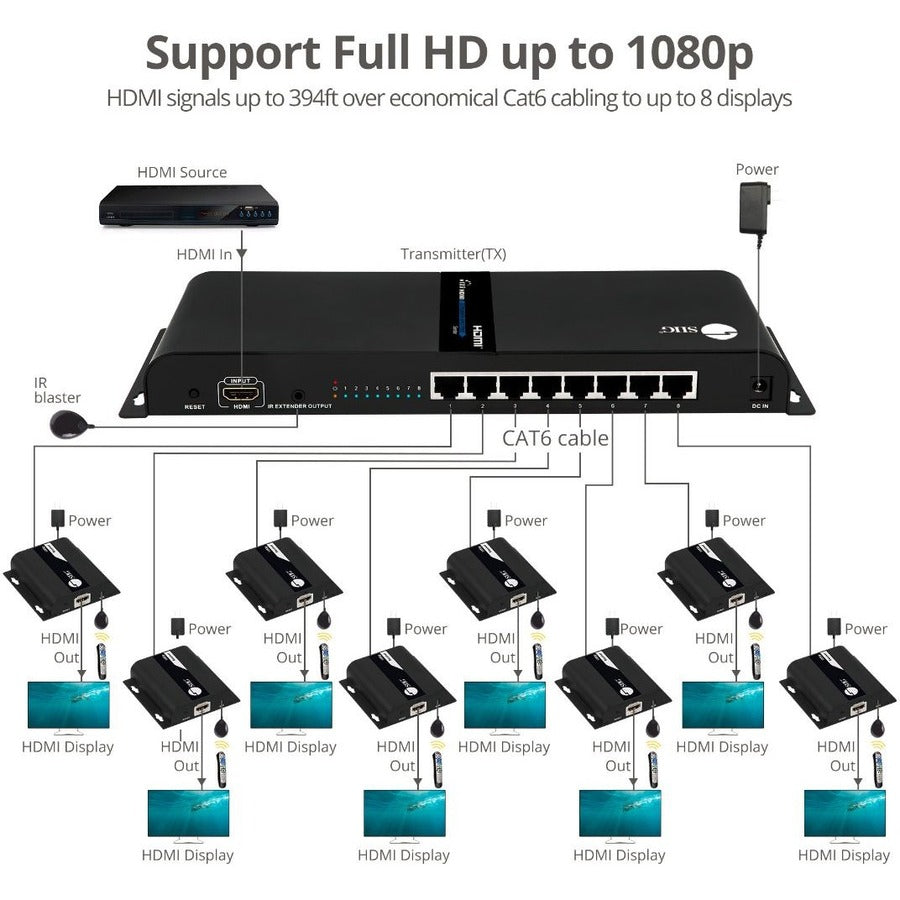

Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 8 displays, IR control, works with Gigabit network switches for more displays and extension

• With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1, are sold separately

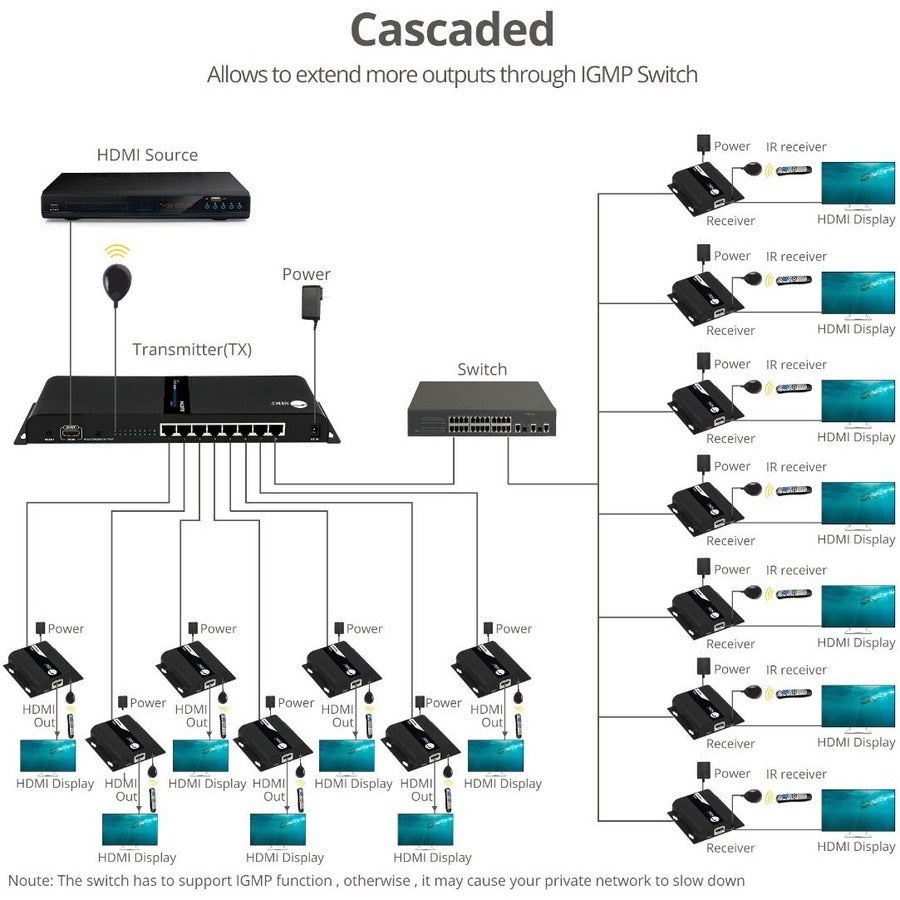

• Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately
• Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming
• IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
• High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
• Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty

• Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission


• 1920 x 1080 maximum video resolution for a vivid, crystal clear display with added productivity


• HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability


• HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency


• Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency


• 1 input devices supported for maximum productive usability


• 8 output devices supported for maximum productive usability


• 393.70 ft maximum operating distance for feasible operation and optimal coverage


• Full HD graphics mode provides optimal video output with remarkable picture clarity


• Wall Mountable form factor for your convenience and simplicity of usage
