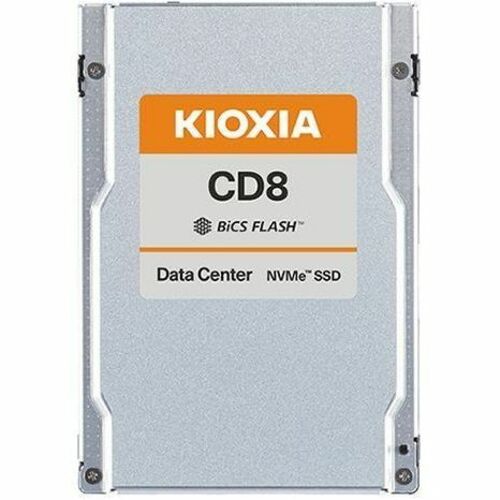

KIOXIA CD8-V KCD8XVUG12T8 12.50 TB Solid State Drive - 2.5" Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Mixed Use

KIOXIA CD8-V KCD8XVUG12T8 12.50 TB Solid State Drive - 2.5" Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Mixed Use

KIOXIA CD8-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction pro-cessing and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Key Features

• PCIe® 4.0, NVMe™ 1.4 specification compliant


• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)


• Form factor: 2.5-inch, 15mm thickness


• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC


• Single-port design, optimized for data center class workloads


• Consistent performance and reliability for demanding 24x7 environments


• Designed for high-density storage deployments


• Power loss protection (PLP) and end-to-end data correction


• Security options: SIE, SED

Key Applications

• Hyperscale


• IoT and big data analytics


• Online transaction processing (OLTP) (transactional and relational databases)


• Virtualized environments


• Streaming media and content delivery network

• Provides more productive performance and superior data storage for a variety of files


• Internal drive type for a reliable and convenient storage solution


• With 12.50 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs


• With the stunning reading speed of 6600 MB/s, get faster boot times and improved overall computing performance


• Write speed of 6000 MB/s enables you to perform write-related tasks in seconds rather than minutes


• PCI Express NVMe 4.0 x4 interface ensures quick and reliable data transfer


• 2.5" form factor for added reliability and dependability
