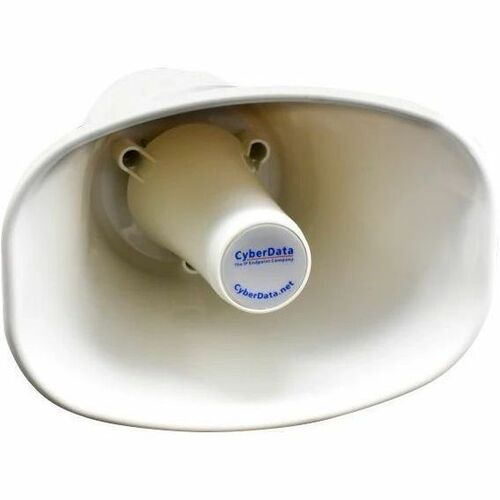

IP66 ANALOG HORN 25V/70V/8 OHM

CyberData IP66 Analog Horn 25V/70V/8 Ohm

The new IP66 Analog Horn 25V/75V/8 Ohm is a heavy duty horn rated for outdoor use, while also being appropriate for warehouses, manufacturing plants, garages and any environment needing loud paging.

The device is an analog re-entrant horn with a powerful and efficient compression driver designed for good speech intelligibility and a large area of coverage.

The IP66 rating means that it is built for harsh outdoor environments including high moisture, dust, oil, and high pressure water jets.

When used with the CyberData SIP Paging 25V/70V Amplifier it can provide a cost-effective solution that can greatly extend the sound coverage area. The Horn offers the option of constant voltage at either 25 or 70 volts as well as a traditional 8 Ohm mode. Configured with 5 power tap settings, the user can select the desired wattage and equivalent dB levels for the space served. Easy installation allows multiple horns to tee off a single home run cable to the Amplifier.

The Horn is also used with the CyberData Loudspeaker and Paging Amps listed under Related Products.

Features

• Supports 25V, 70V or traditional 8 Ohm power input


• Multiple power tap settings for desired dB output


• High efficiency speaker driver


• Designed for good speech intelligibility


• Suitable for background music


• Weather and corrosion resistant design


• IP66 Rating


• Adjustable mounting base


• 3.28 ft (1m) connected cable
