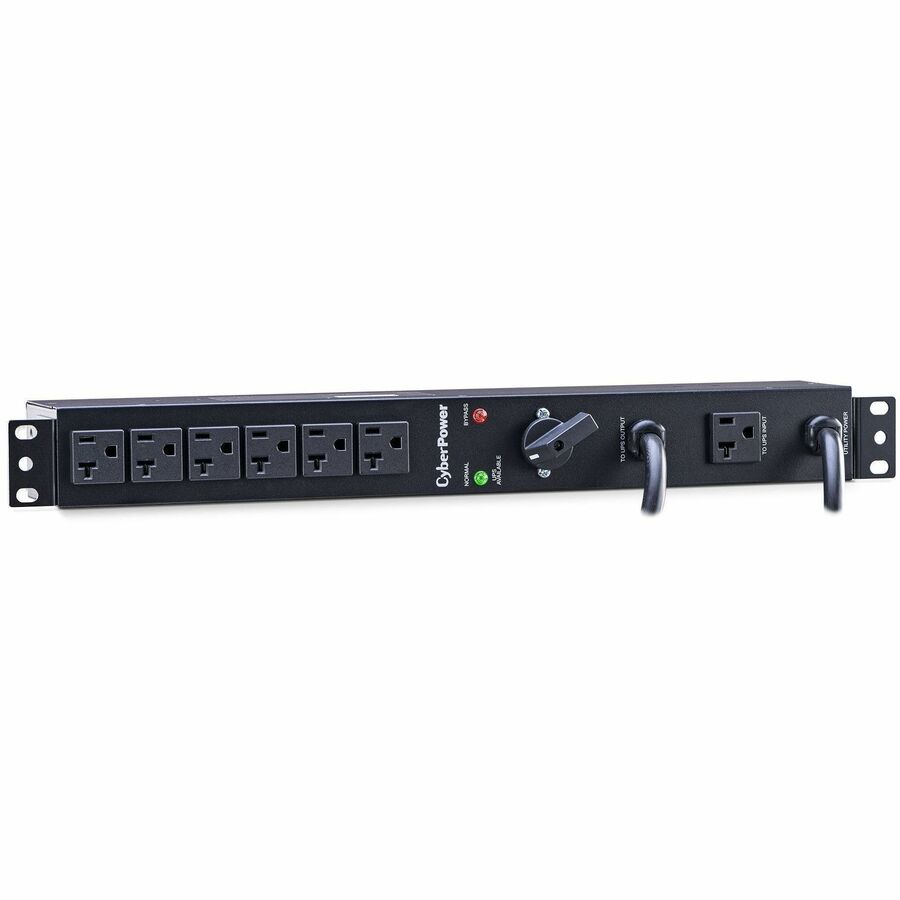

CyberPower MBP20A6 120 VAC 20A Maintenance Bypass PDU

CyberPower MBP20A6 120 VAC 20A Maintenance Bypass PDU

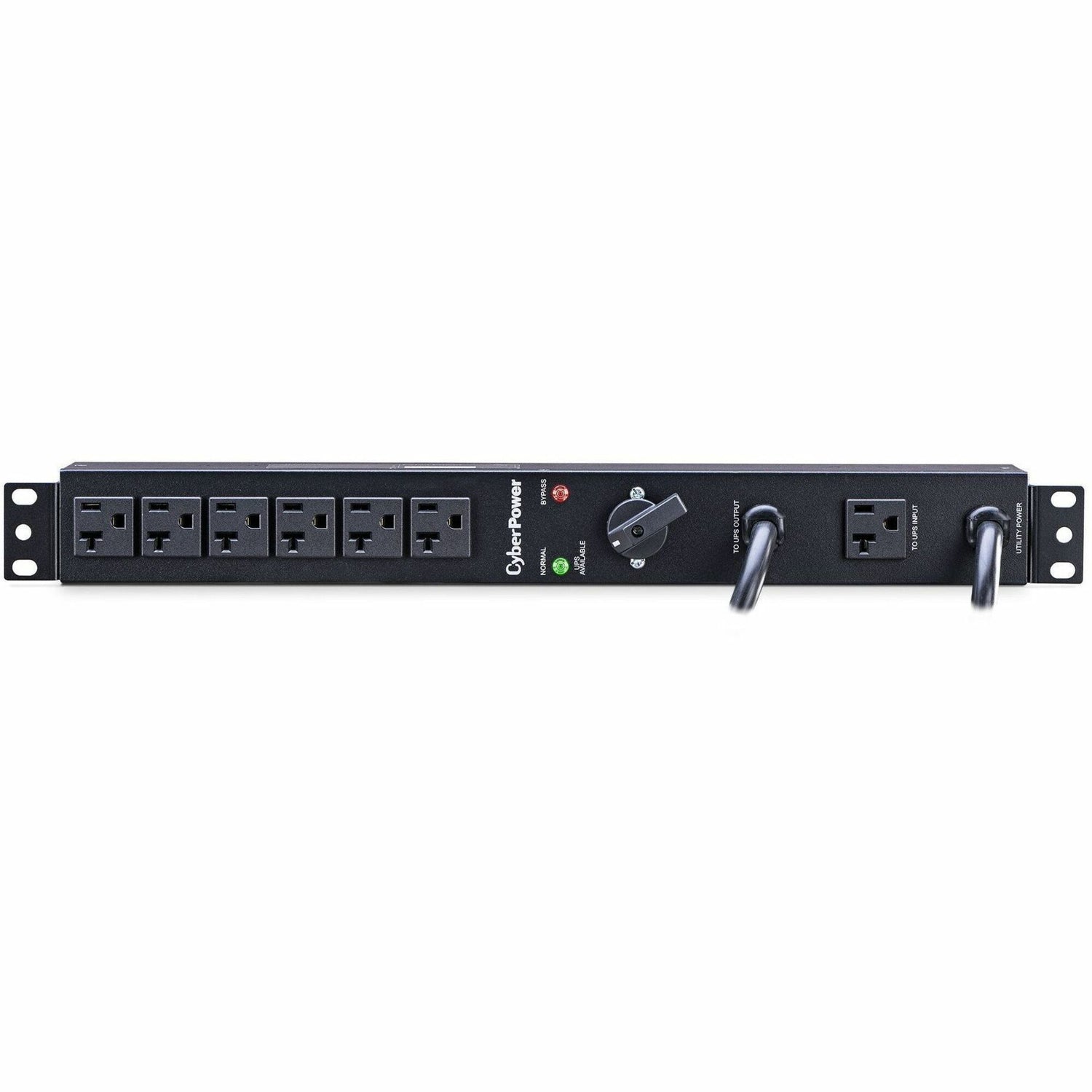

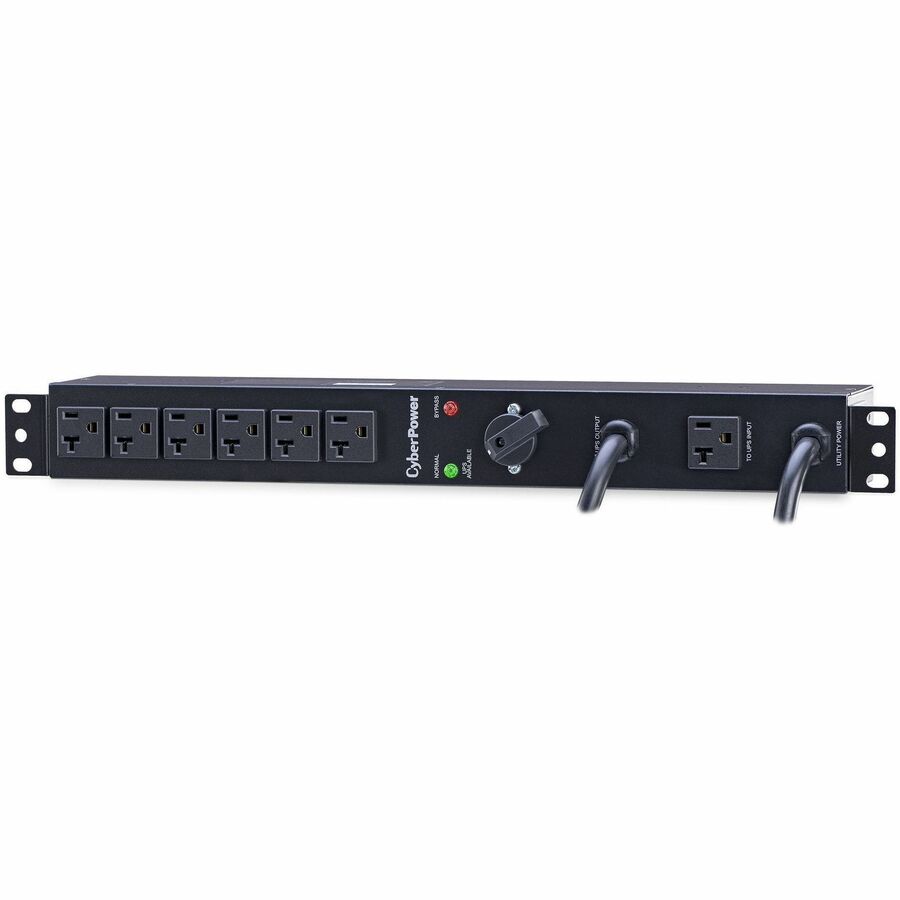

The CyberPower MBP20A6, a 6-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 20A output (derated to 16A) to 6 NEMA 5-20R receptacles. Designed for datacenters and other electrically demanding applications, the MBP20A6 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.

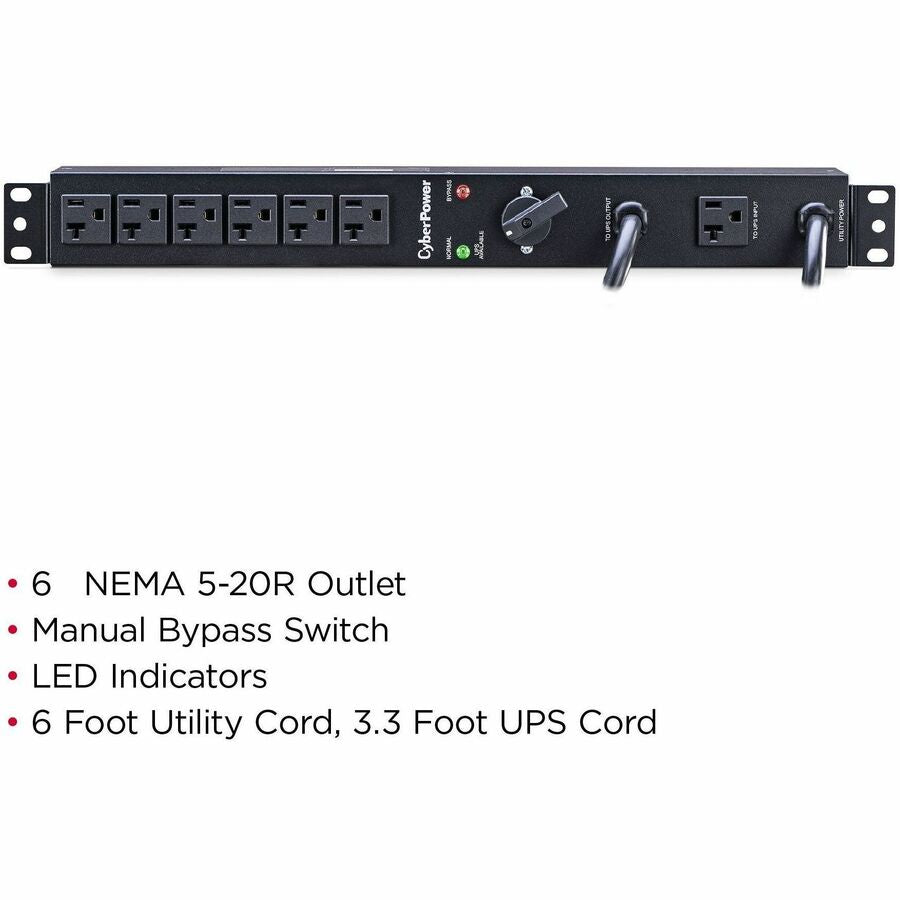

A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP20A6 through a dedicated NEMA 5-20R separate from the outlets for connected devices. When the switch on the front of the MBP20A6 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

Rugged, industrial-grade metal housing protects the MBP20A6. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP20A6 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.

• 3 year


• UPS mounting hardware:


• Yes


• Warranty:

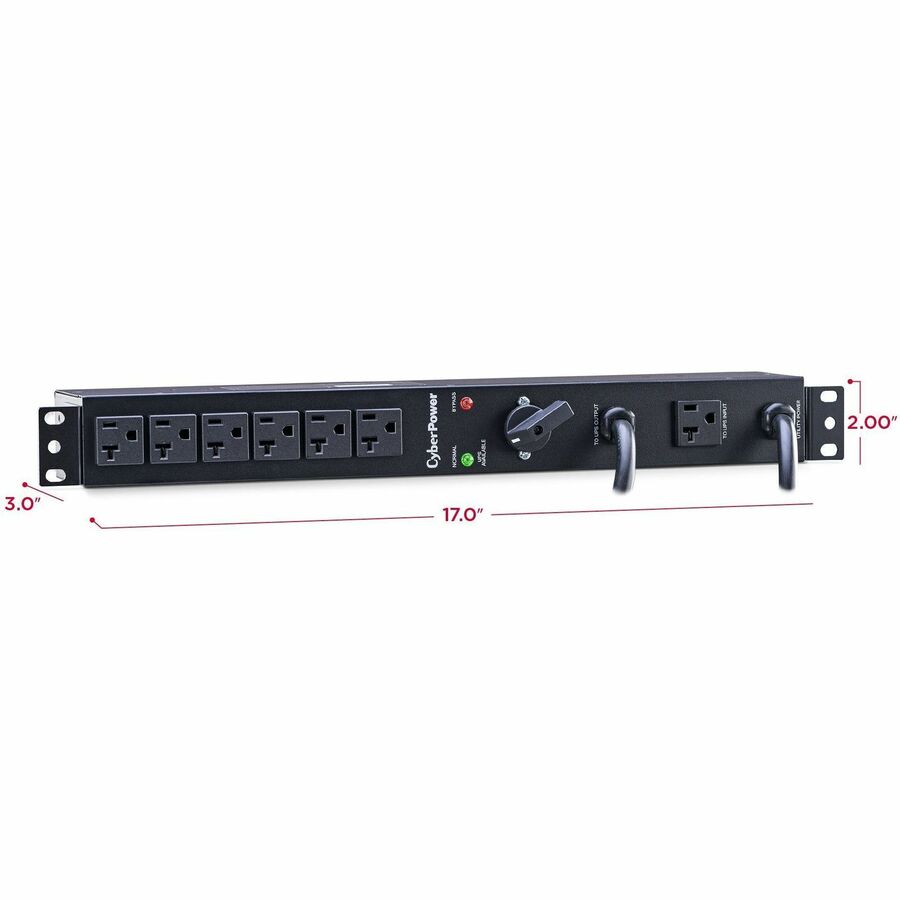

• Dimensions (in.):


• 17.0W x 2.0H x 3.0D


• Size:


• 1U Rackmount


• LED indicators:


• Normal (Green), Bypass (Red)


• Power cords:


• 6-ft. utility cord, 3.3-ft. UPS cord


• Total outlets:


• 6 NEMA 5-20R


• Input plugs:


• 2 NEMA 5-20P plugs (utility, UPS output)


• Volts:


• 100 - 120 VAC


• 20A (Derated to 16A)


• Normal mode, Bypass mode


• Amps:


• Maintenance Bypass PDU:
