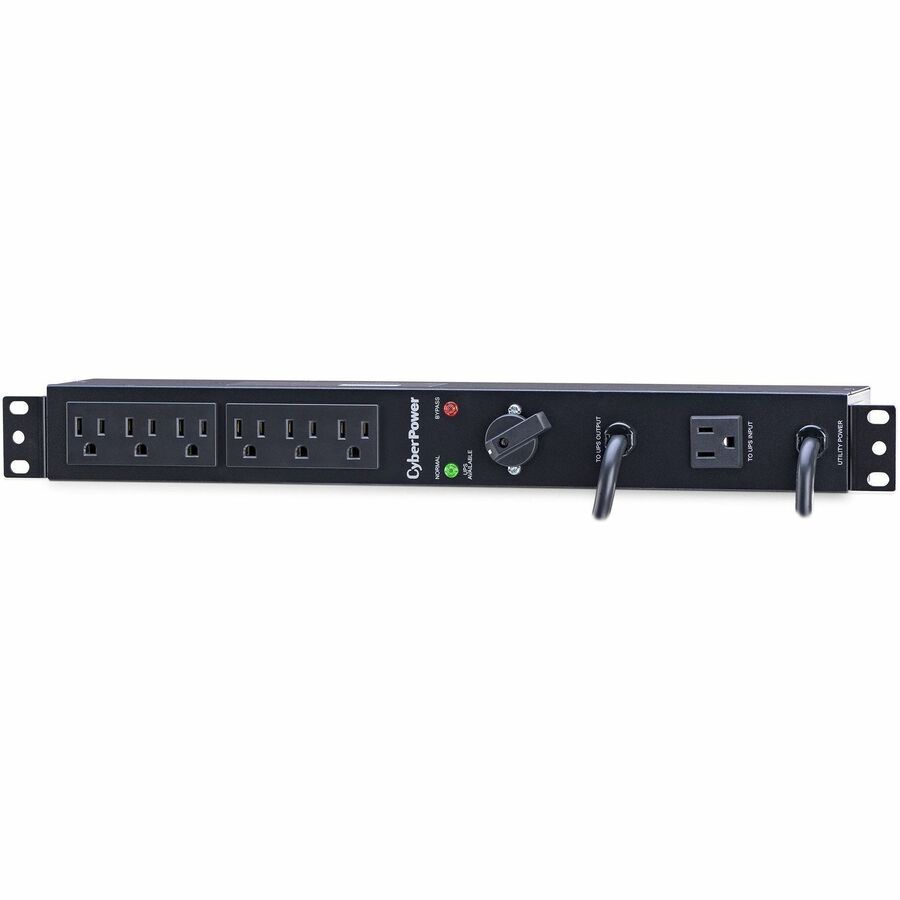

CyberPower MBP15A6 120 VAC 15A Maintenance Bypass PDU

CyberPower MBP15A6 120 VAC 15A Maintenance Bypass PDU

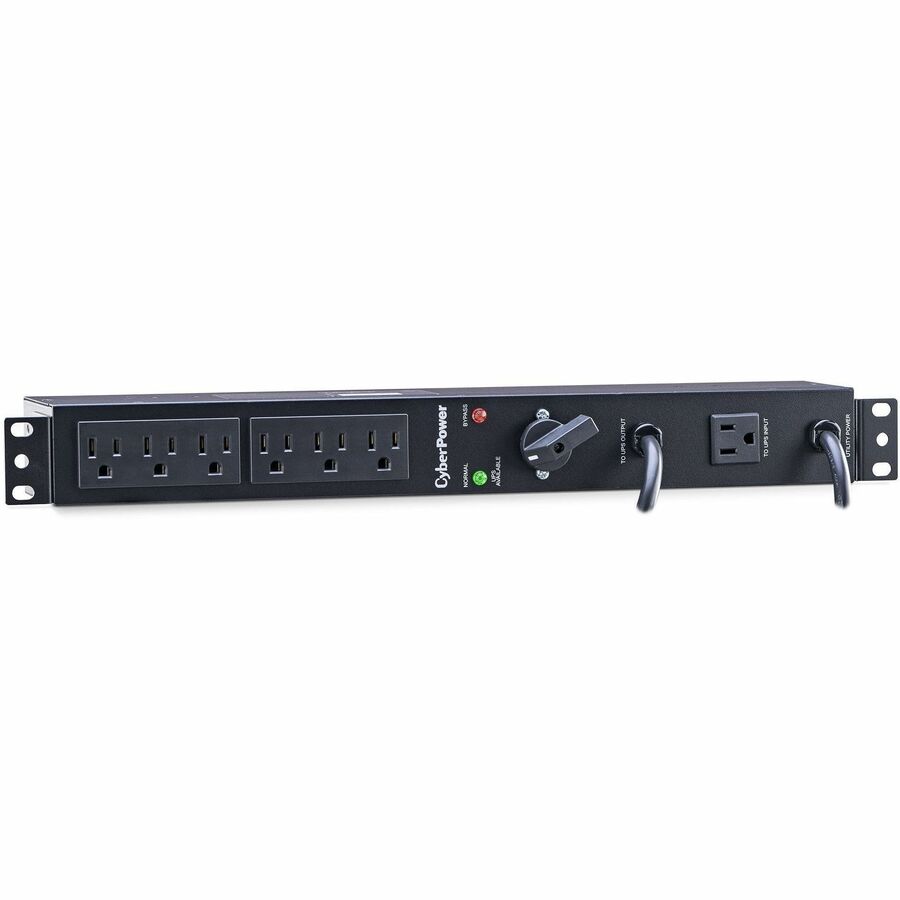

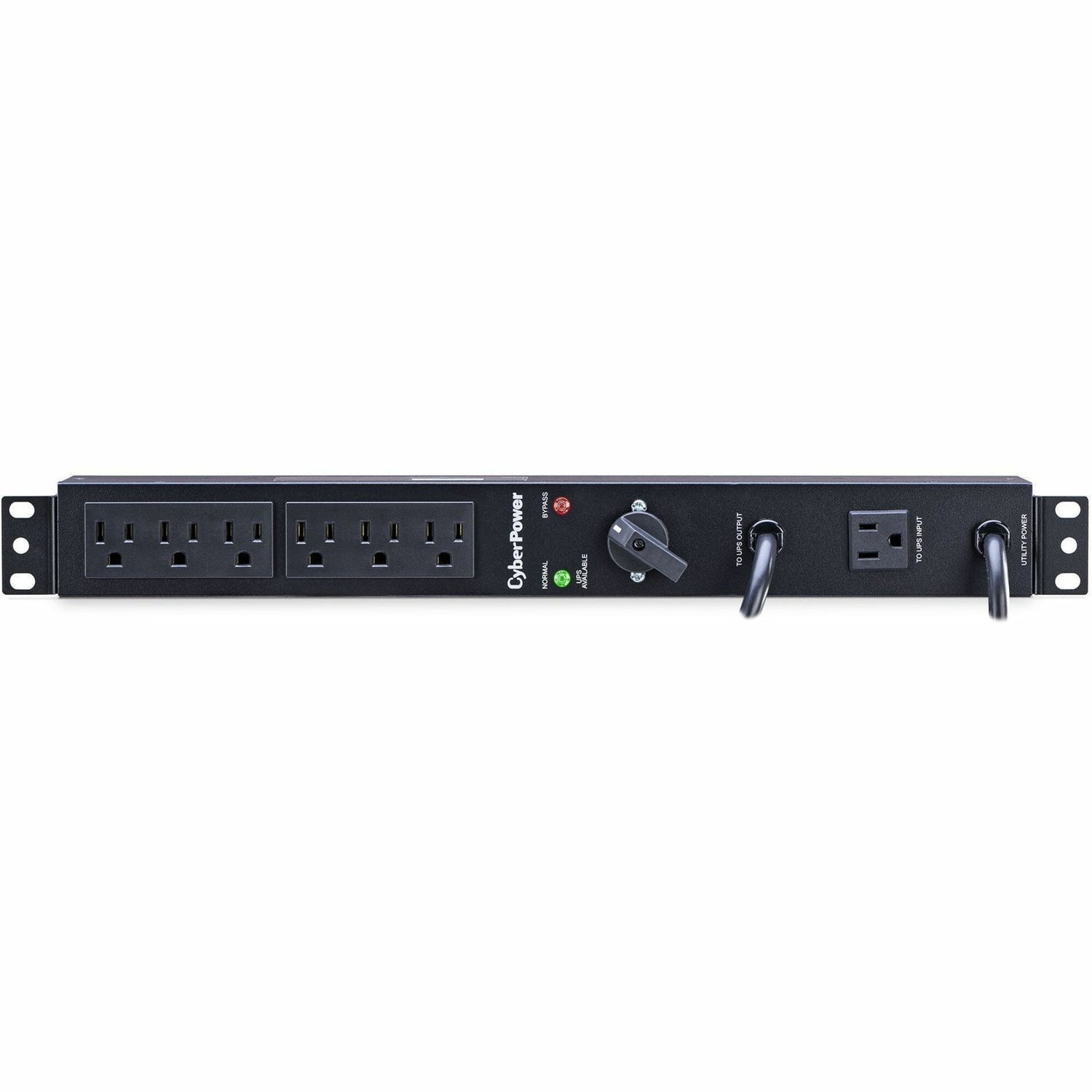

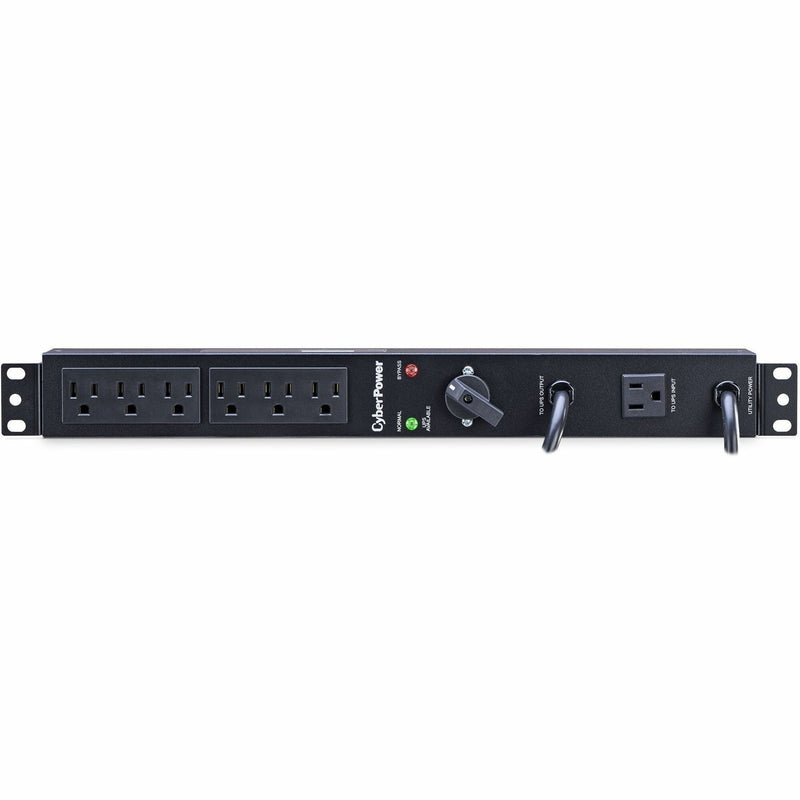

The CyberPower MBP15A6, a 6-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 15A output (derated to 12A) to 6 NEMA 5-15R receptacles. Designed for datacenters and other electrically demanding applications, the MBP15A6 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of the connected equipment when performing maintenance, replacing batteries, or installing a new UPS.

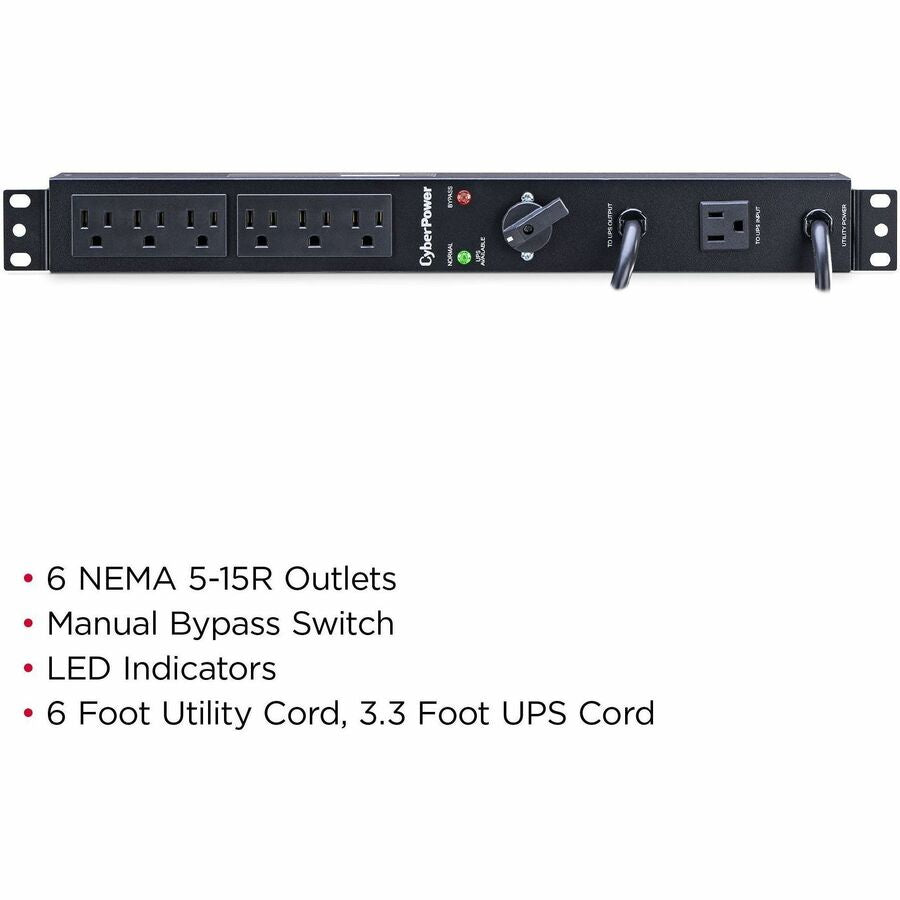

A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP15A6 through a dedicated NEMA 5-15R separate from the outlets for connected devices. When the switch on the front of the MBP15A6 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

Rugged, industrial-grade metal housing protects the MBP15A6. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP15A6 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.

• 3 year


• Yes


• Warranty:


• UPS mounting hardware:

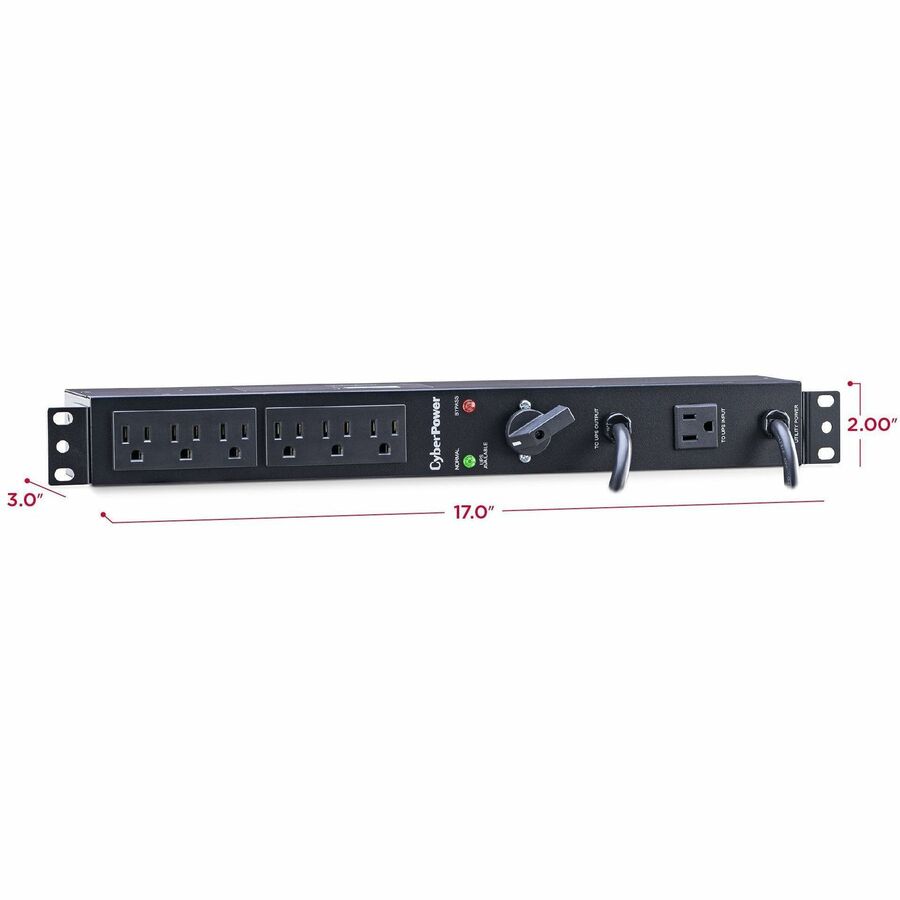

• 17.0W x 2.0H x 3.0D


• Size:


• 1U Rackmount


• Dimensions (in.):


• Normal (Green), Bypass (Red)


• LED indicators:


• 6 NEMA 5-15R


• Power cords:


• 6-ft. utility cord, 3.3-ft. UPS cord


• 2 NEMA 5-15P plugs (utility, UPS output)


• Total outlets:


• Volts:


• 100 - 120 VAC


• Input plugs:


• Amps:


• 15A (Derated to 12A)


• Normal mode, Bypass mode


• Maintenance Bypass PDU:
