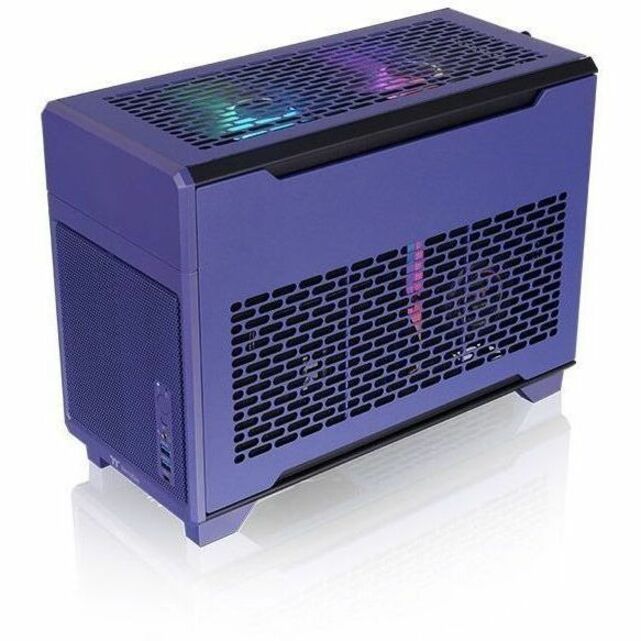

Thermaltake TR100 Future Dusk Mini Tower Chassis

Thermaltake TR100 Future Dusk Mini Tower Chassis

Size Down, Power Up

The TR100 Future Dusk Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5" SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9" LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!

Compact Design

The TR100 Future Dusk is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.

Superior GPU Support

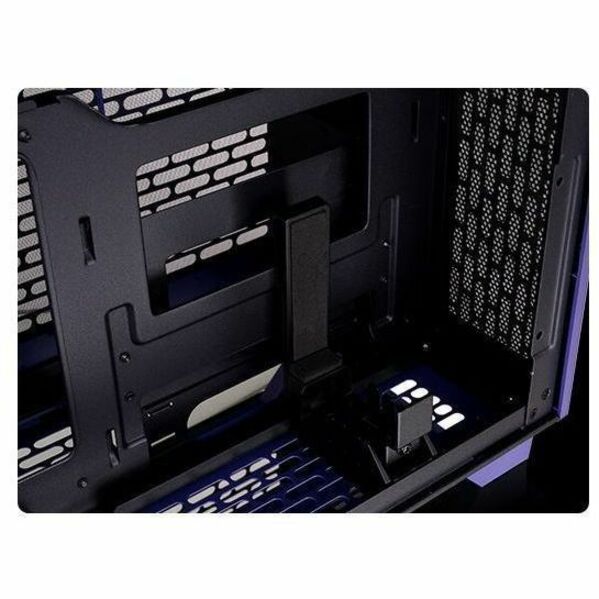

The TR100 Future Dusk supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.

Efficient Cooling Solutions

The TR100 Future Dusk supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.

Redefining Portable Gaming

More than just a case, The TR100 Future Dusk is a complete, travel-ready gaming solution. Whether you're traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there's no need to sacrifice performance or leave your gaming experience behind!

TT Travel Trunk for TR100

The lightweight and durable luggage is designed to carry the PC case and a full gaming setup, including a VR headset, portable monitor, keyboard, and mouse.

VR Headset

TR100 Mini Tower Chassis

Cables

Mouse

Monitor

Keyboard

Easy Access with Removable Panels

The TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.

SFX PSU Support

The TR100 Future Dusk features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.

Visually Pleasing, Totally Interactive

Maximize your TR100's visual effects by upgrading it with our LCD Screen Kit.

The 3.9" LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.

Personalize Your LCD Display

Through the TT RGB Plus, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What's more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.

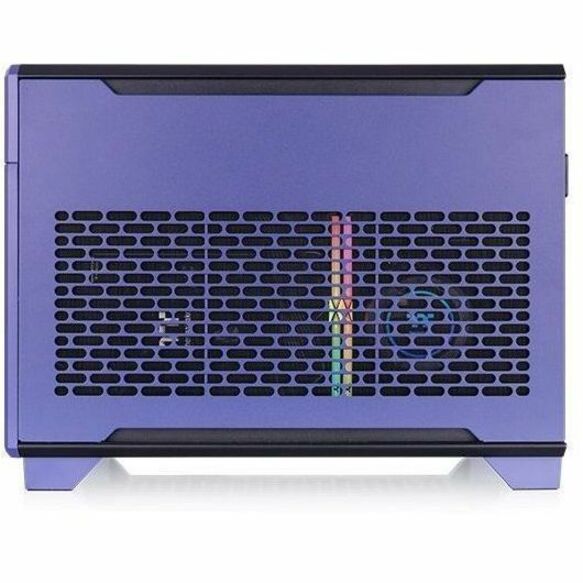

Air Intake and Exhaust

Despite its compact size, The TR100 Future Dusk still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

• Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box


• The space-saving mini-tower structure supports up to 2 fan(s) to maintain the casing ambient along with offering power-pack performance and portability
