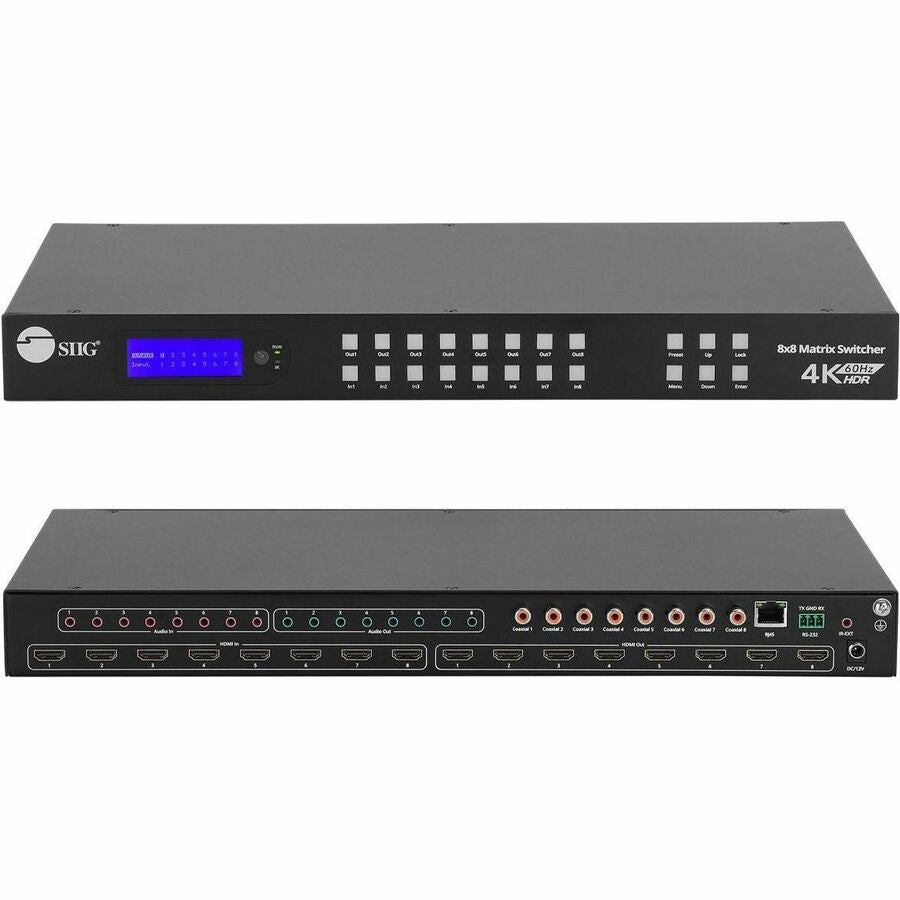

SIIG 8x8 HDMI 4K60Hz Matrix Switcher with LCD - 18Gbps- Downscaling- EDID Management - ARC- Audio Embedded/Extraction

SIIG 8x8 HDMI 4K60Hz Matrix Switcher with LCD - 18Gbps- Downscaling- EDID Management - ARC- Audio Embedded/Extraction

• Allows up to 8 HDMI source devices to be independently switched to 8 HDMI monitors, HDTVs or projectors, the eight output signals can be different or the same at the same time. Each HDMI output has independent analog audio outputs and coaxial S/PDIF port


• Supports HDMI resolution up to 4K@60Hz YUV 4:4:4, HDR 10 and HDCP 2.2/1.4, Bandwidth up to 18Gbps and support 3D, HLG, Dolby Vision


• Supports HDMI downscaling from 4K@60Hz to 1080p@60Hz


• Supports analog audio embedded and HDMI audio extraction


• Built-in 8 analog audio inputs, 8 analog audio outputs and 8 S/PDIF (Coaxial) audio outputs, analog audio for PCM 2.0, S/PDIF (Coaxial) audio up to PCM 5.1, Dolby Digital, DTS; HDMI for PCM 2.0 to 7.1/16 to 24bit, Dolby / DTS / Dolby Atmos / DTS-HD


• Support HDMI ARC on Coaxial only and EDID management

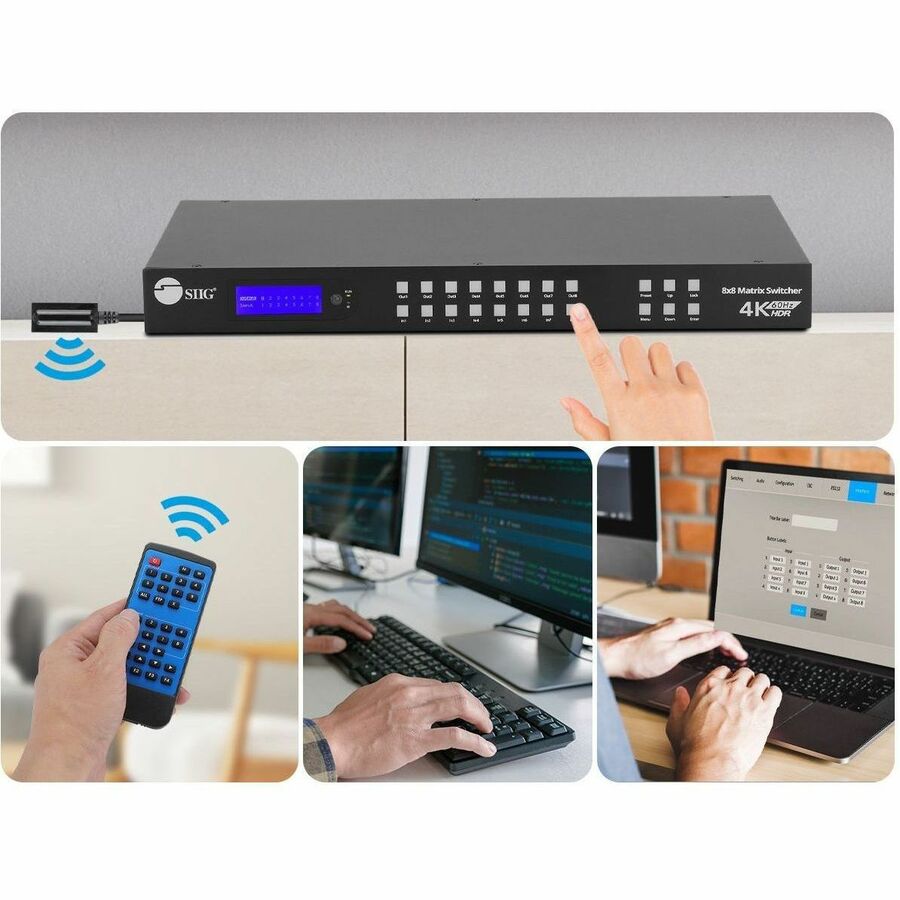

• Controllable via front-panel button, IR remote, RS-232, IP and Web GUI, firmware upgrade via RS-232 interface


• LCD screen shows real-time I/O connection status, The Ethernet port supports Telnet, UDP, HTTP and TCP/IP

• Switch between sources by using this video switchbox without degradation of video quality and eliminate the manual work


• A great solution for connecting tv


• Enjoy watching any class of content on 3840 x 2160 resolution
