dbx 12x6 Digital Zone Processor

dbx 12x6 Digital Zone Processor

The ZonePRO 1261m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus.

The 1261m features a total of 12 inputs and six outputs. Inputs include six balanced mic/line switchable terminal block inputs, four mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for up to two digital channels. Hardware-controlled microphone gain allows adjustment of microphone gain per channel.

The 1261m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth®, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.

A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.

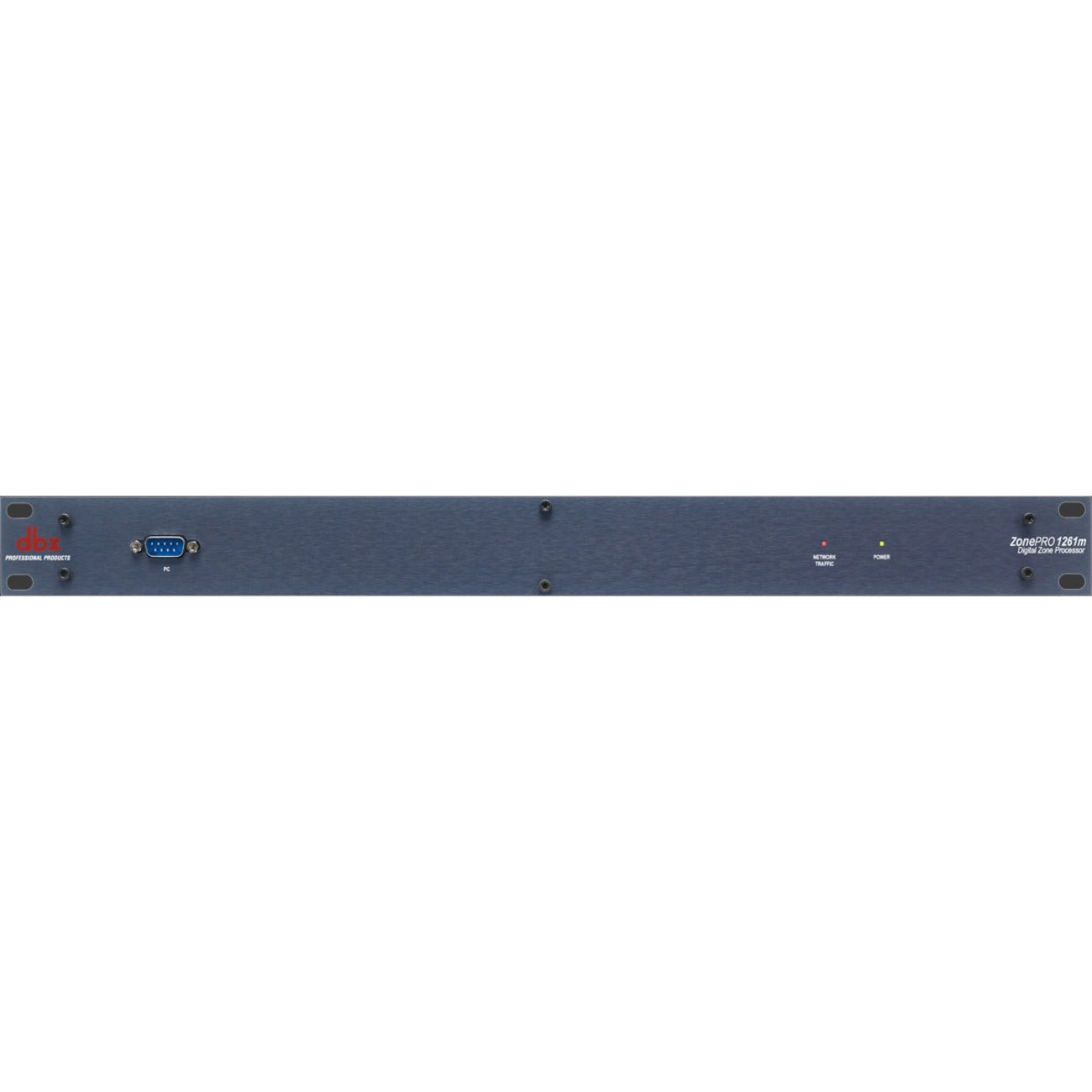

The front panel of the 1261m features a power status LED, a network traffic LED, and an RS-232 control port.

Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control.

• 12 Inputs / 6 Outputs


• 6 Balanced Mic/Line Inputs


• 4 Unbalanced, Mono-Summed RCA Input Pairs


• S/PDIF Input


• Microphone Gain per Channel


• Pre-Configured Architecture


• Two Configurable Input Insert Positions


• One Configurable Output Insert Position


• AutoWarmth® per Output Zone


• Link Bus


• Optional ZC Controllers


• Ethernet Control


• Serial Control


• Third Party Control


• Wizard-Driven Configuration
